Unit Circle
Definition

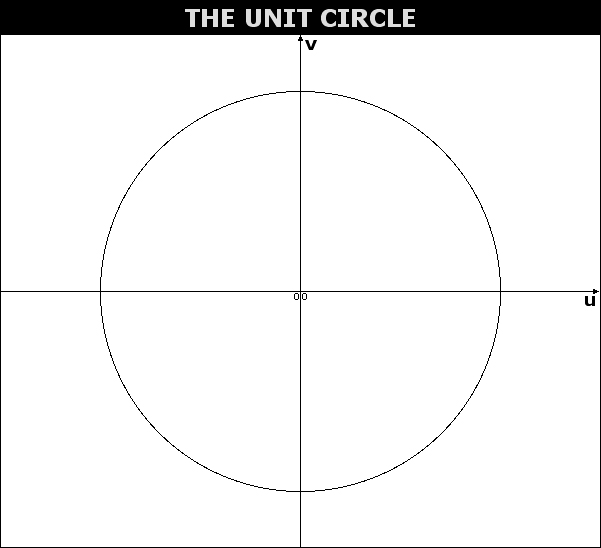

The unit circle is a circle centered at the origin, with a radius of one.


The equation of the unit circle is u2 + v2 = 1.

Note: To avoid labelling conflicts later, the unit circle is graphed in the u-v plane, rather than the x-y plane.


The Unit Circle

The unit circle provides a visual way to think about trigonometry and trigonometric functions. The unit circle concept takes any equivalence class of similar right triangles and represents the class using a single triangle with a hypotenuse of one. The triangle is oriented in the coordinate plane with the adjacent side along the x-axis, starting at the origin with angle θ (theta).



Recall that ratios of the lengths of corresponding sides of similar triangles are equal.


In the coordinate plane, θ usually represents either:

Units


Simple Locations Along the Unit Circle

Simple locations along the unit circle are based on quadrantal angles as well as the 45°-45°-90° and 30°-60°-90° triangles.

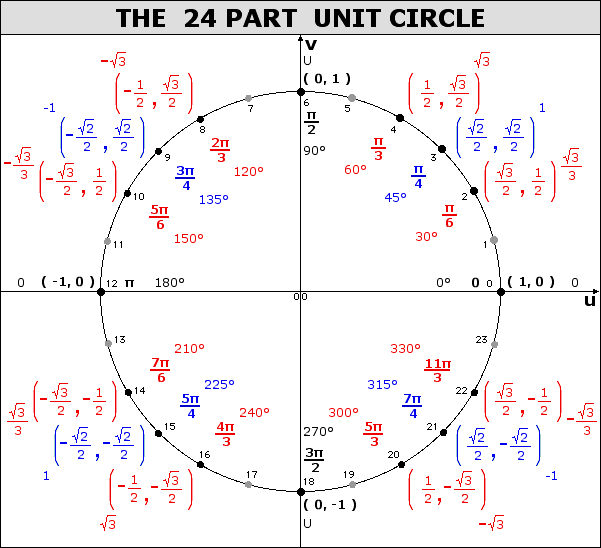

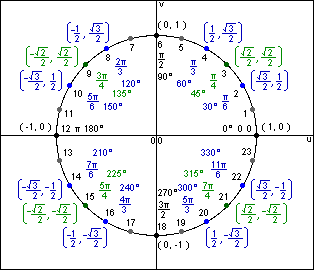

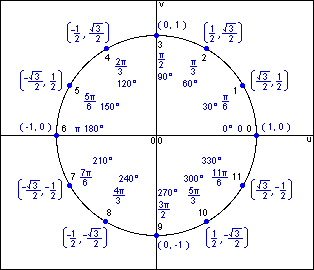

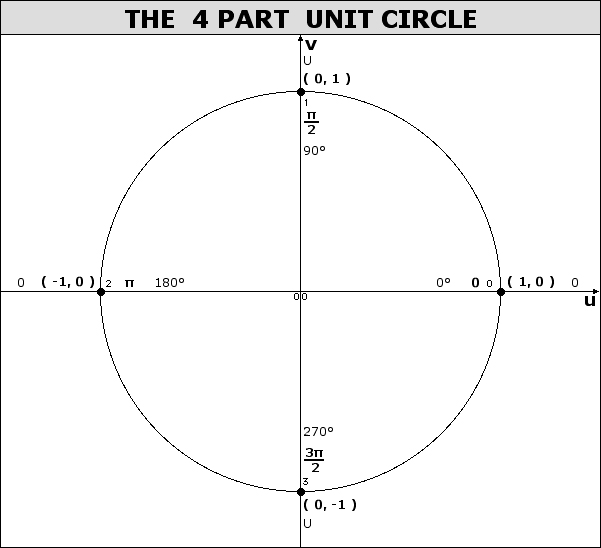

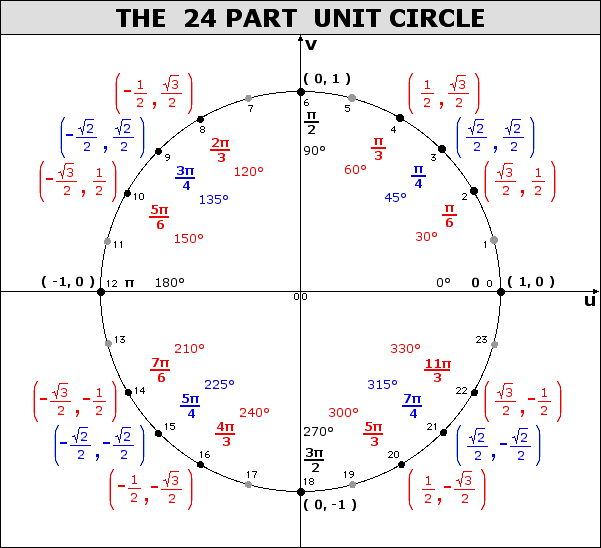

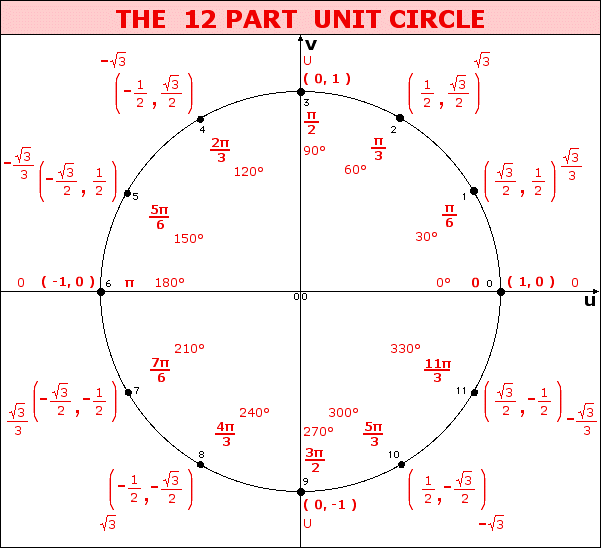

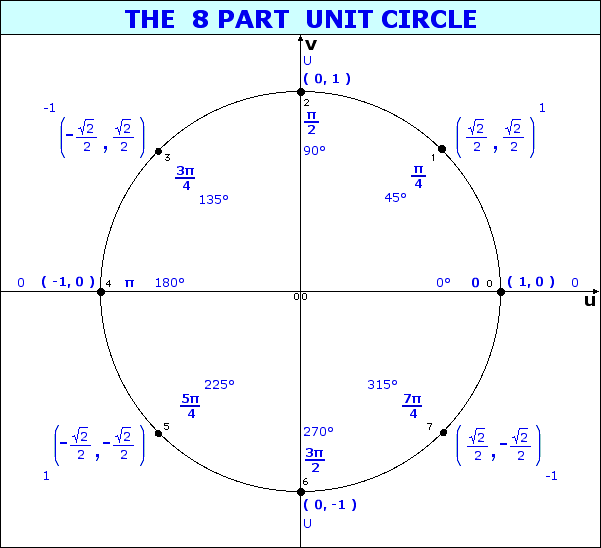

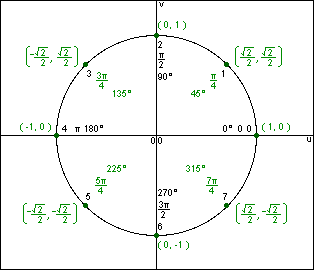

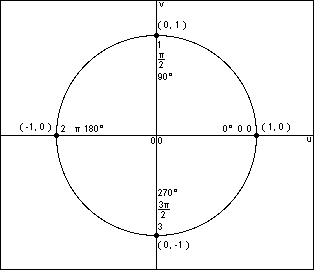

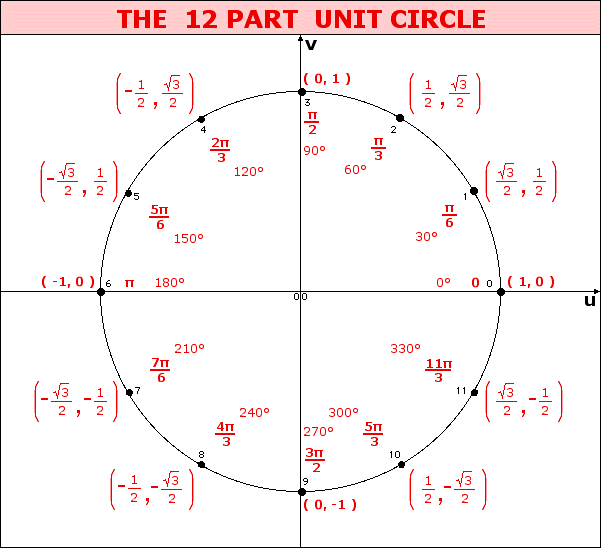

Typical ways of understanding the unit circle involve partitioning the unit circle into four, eight, twelve or twenty-four congruent parts [starting at ( 1, 0 ), wrapping counter-clockwise about the circle].

Click here to see an illustrative animation showing these circles are all "equivalent".


Unit Circle applications

The unit circle can be used to:

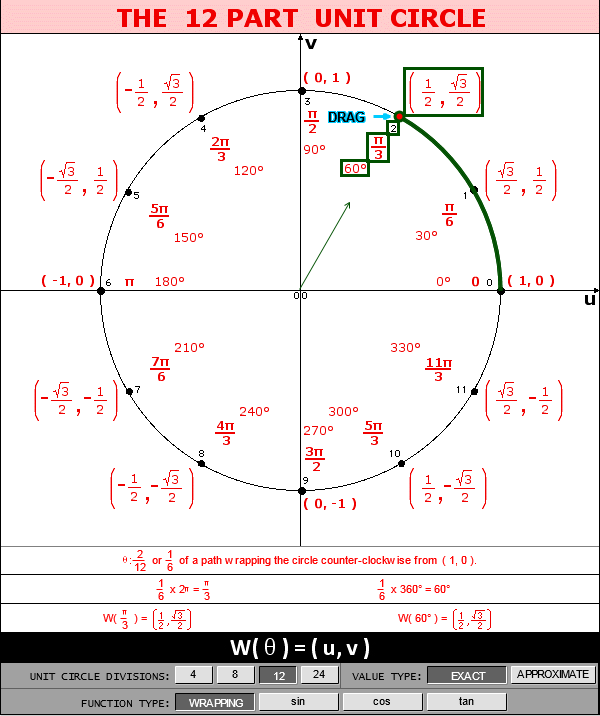

Demonstration Applet
Your browser does not support the canvas element.
