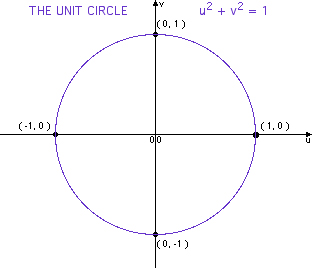

In the illustration below, the x and y-axes partition the unit circle into four equal arcs. The locations of intersection are ( 1, 0 ),
( 0, 1 ), (-1, 0 ) and ( 0, -1).
Recall that θ can represent either a directed arclength starting from the initial point ( 1, 0 ) or an angle with an initial arm along the positive x-axis. In either case, counterclockwise is positive.

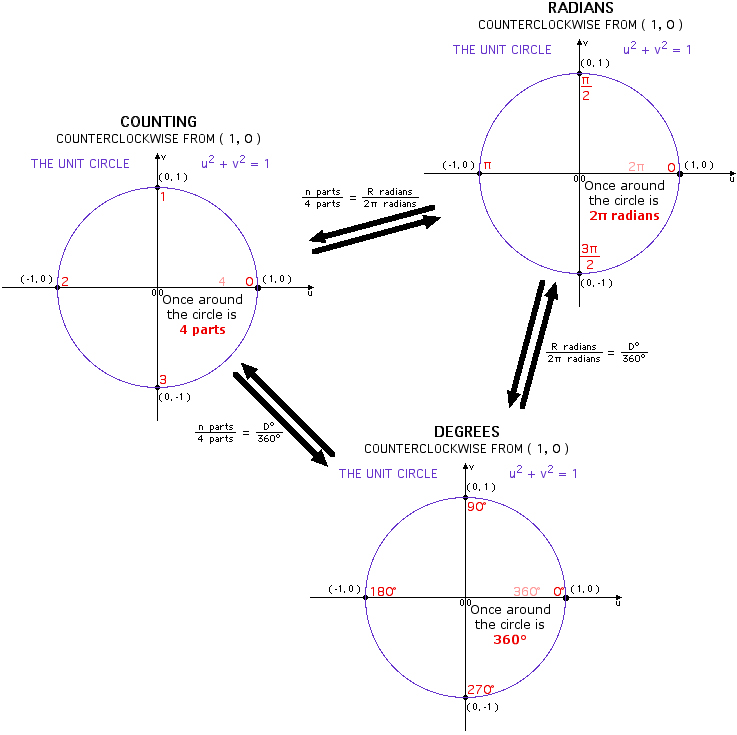

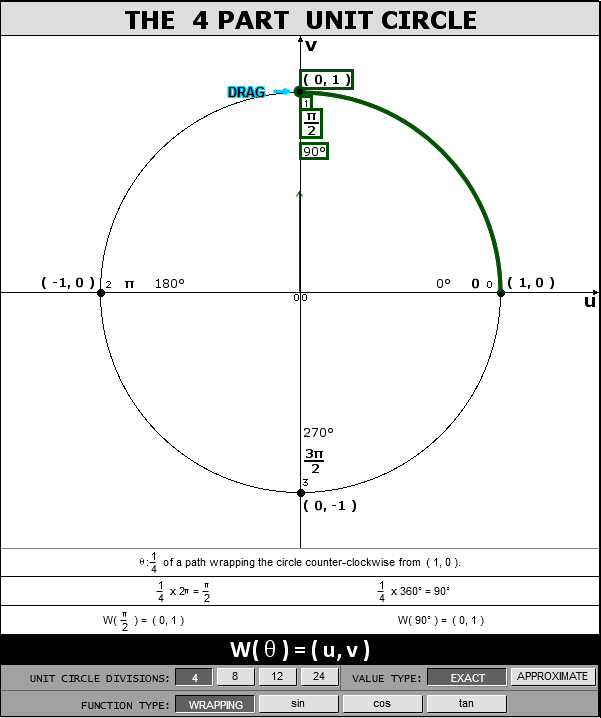

The illustration below illustrates the four part unit circle:
- counting from zero at ( 1, 0 ), counterclockwise around the circle
- traversing the circle counterclockwise by intervals of π/2 starting from ( 1, 0 )
- traversing the circle counterclockwise by intervals of 90° starting from ( 1, 0 ).
