Slider Components and Functions

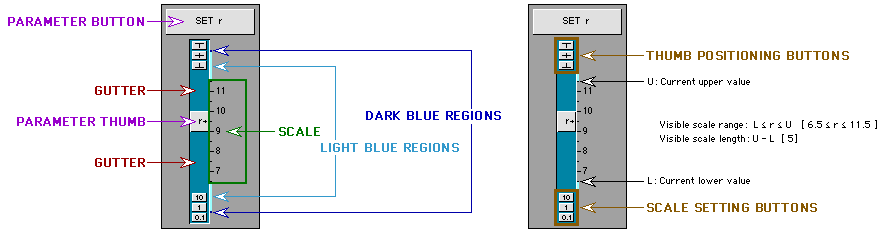

Slider Components
Slider Functions (dragging)
- Drag a parameter thumb to change the value of a parameter. When you drag the thumb, the "thumb positioning buttons" and the "scale setting buttons" will disappear.
- When the parameter thumb points to a light blue region, the visible scale range will change, a sub-tick at a time. The scale will appear to slowly move.
- When the parameter thumb points to a dark blue region, the visible scale range will change, a tick at a time. The scale will appear to quickly move.
- When the actual upper end of the scale is reached, the light and dark blue regions at the top of the scale will disappear.
- When the actual lower end of the scale is reached, the light and dark blue regions at the bottom of the scale will disappear.
- Drag a parameter scale to move it. (ie. Change the visible scale range but maintain the visible scale length.)
- Drag in the gutter, towards or away from a parameter thumb to adjust the visible scale range by changing the visible scale length.
Slider Functions (buttons)
- Select a "parameter button" to enter a value for a parameter as text.

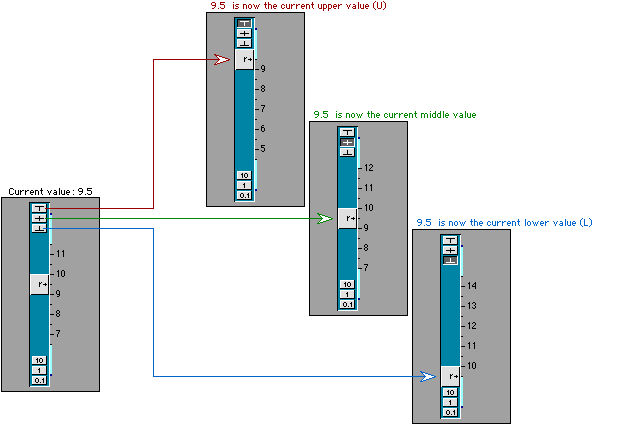

- Select a "thumb positioning button" to reposition the scale and parameter thumb so that the current parameter value is at the top, middle or bottom of the scale. (See the illustration below.)

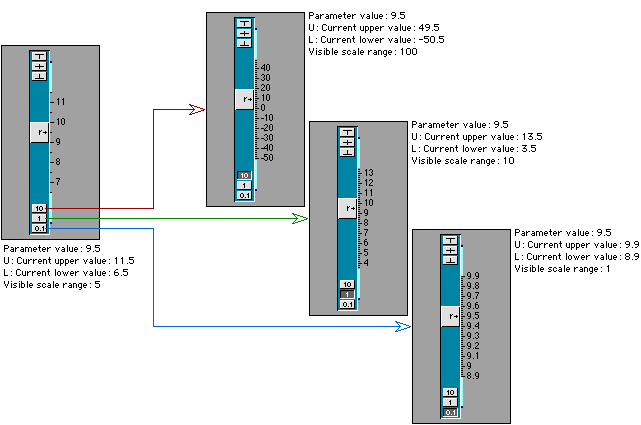

- Select a "scale setting button" to maintain the parameter value and thumb position, but change the visible scale range. (See the illustration below.)
Slider Functions (keys)
- The left and right arrow keys can be used to change the selected parameter [light blue].
- The up and down arrow keys can be used to increase or decrease the selected parameter. (Use this feature for fine adjustments.)
- If the keys don't respond, click the cursor in the applet then try again.
